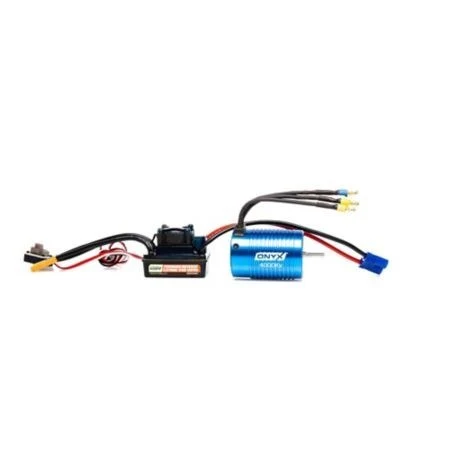

Onyx Onyx 1/10 4P 4000Kv ESC/Mot Combo

Overview

Key Features
4-Pole design for increased torque and improved overall efficiency
Sensorless brushless technology for improved performance and maintenance free operation
Standard 1/8 in shaft
3.5mm bullet style connectors
4000Kv motor included
Waterproof ESC
Pre-wired with high-current EC3 connector and 3.5mm bullet style connectors
NiMH and Li-Po compatible
70A can handle 4-9 cell NiMH or 2S-3S Li-Po
Built in Cooling fan
Easily programmable through integrated setup button
Compact design for easy fit into most any 1/10th scale on and off road platform
Overview
Onyx brushless systems offer price sensitive enthusiasts the ultimate solution when searching for an easy and affordable method of stepping up to brushless power. Designed for most 1/10th scale on and off road electric vehicles, each system comes with everything users need to upgrade to brushless power. All systems include a potent 4-pole sensorless brushless motor and 70A waterproof ESC that comes pre-wired with a high-current EC3 connector. The ESC is Ni-MH and Li-Po/Li-Fe compatible and was designed to handle up to a 9 cell Ni-MH pack or 3S Li-Po/Li-Fe.

Onyx brushless systems are compatible with most 1/10th scale on and off-road electric vehicles including 1/10th scale ECX, Losi, ARRMA, HPI, Associated and many more.

Specifications

Adjustable Timing
No
Auto Cutoff
Yes
Battery Connector
EC3
Bearings or Bushings
Two 5 × 13 × 4mm Bearings
BEC
Yes
BEC Continous Current
3A
BEC Type
Linear
BEC Voltage
6V
Brakes
Yes
Efficiency
90%
Forward
Yes
Idle Current (Io)
1.5 ± 0.5 @ 7.2V
Input Voltage
4.8–11.1V
Low-Voltage Cutoff Programmable
Yes
Maximum Burst Current
290A
Maximum Continuous Current
70A
Motor Connector
3.5mm Bullet
Number of Poles
4
Output
290W
Overload Protection
Yes
Reverse
Yes
RPM/Volt (Kv)
4000Kv
Shaft Diameter
1/8 in
Shaft Length
15mm
Size
540
Type
Brushless, sensorless inrunner motor/70A waterproof ESC combo
Weight
232g
